MINI Desktop Economic Universal Tensile Compression StrengthTester Testing Machine
1. Quick Details
| Alternative name | Table type tensile strength tester With Serve Motor |
| Function | Test for tensile strength, elongation, extension, and peeling, tearing strength of leather, fabrics, shoes... |
| Type | Table type economical test machine |
| Weight | 70kg |
| Volume | 50*36*183CM (W×D×H) |
| Corresponding test standard | ASTM D1790,D1593,JIS K6545,HB-T2877, CNS-7705 |
2. Description
tensile testing equipment with Servo motor is widely used in controlling the quality; Rubber, Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials...
Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.
3. Features
(1) Elegant and nice structure design
(2) Precise leading screw
(3) Advanced controlling system- data sampling and drive control by computer
(4) Powerful software function- fully opening testing software. Users can finished all mechanics test
items by this existing software, but also can edit exclusive test method according to specifical requirement.(5) Excellent test accuracy - better 1 degree, 1/100,000 strength resolution; resolution of deformation
measurement is 0.001mm.
4. Specifications
| Model | GX-8003 |
| Load range | 5-200kg |
| Unit exchange | kgf,gf,Ton,lbf,N,kN |
| Accuracy of load | ± 2% |
| Load resolution | 1/10,000 |
| Deformation measuring resolution | 0.001mm |
| Action | Tensile and compression function |
| Load Magnifying Rate | Variable speed |
| Max. tensile space | 800mm (mot including fixture) |
| Displacement resolution | 0.01mm |
| Test speed range | 25～500mm/min |
| Input mode of speed | Knob |
| Stop mode | Specimen damage or set lower and upper data limit |
| Items for printing | Data; test times, largest force value, average value |
| Item for display | Test value; peak value; breaking value and elongation |
| Display | LCD |
| Motor | AC motor |
| Control system | Electronic |
| Weight | 80kg |
| Standard Accessories | 1 Sensor; A pair of tensile fixture; a pair of universal functional fixture; operating manual |
| Power | 220V/50HZ |

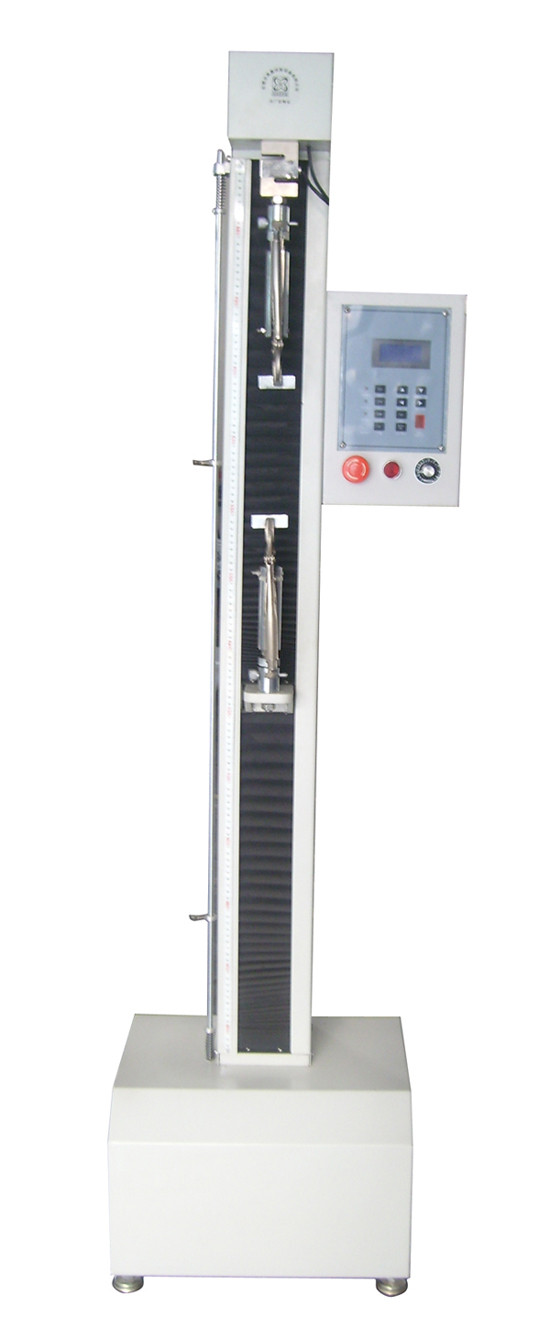

5.Picture
