Shoes Heel Impact Tester BS-5131 SATRA TM20 Standard

Product Categories

Dongguan Gaoxin Testing Equipment Co., Ltd.，

Contact Now

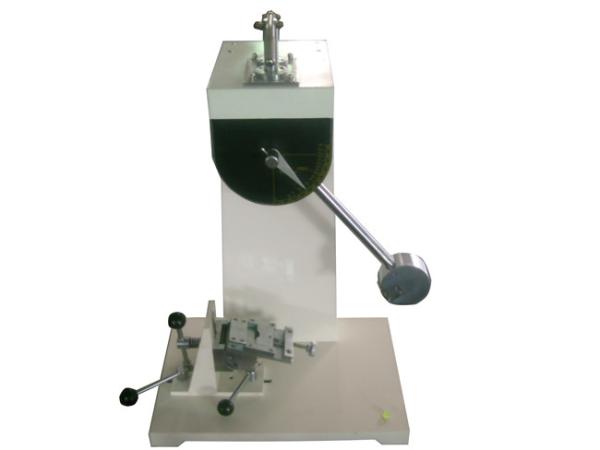

Name: Shoes Heel Impact Tester BS5131 SATRA TM20 Standard
Brand: Gaoxin
Price: 1 USD

Brand Name : Gaoxin

Model Number : GX-5034

Certification : ISO 2008

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : FOB Shenzhen, T/T

Supply Ability : 50 sets per month

Delivery Time : 15 working days

Packaging Details : Non-fumigation wooden box

material : 304# stainless steel

color : grey

type : vertical type

Weight : 101kg

Volume : 110×93×127 cm (W×D×H)

Swing arm : φ25mm

Specimen adjustable range : 0~25mm(H), angle 0~45°

Contact Now

Testing Equipment Of Easy Operation Impact Durability Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard

1. Quick Details:

Alternative name	Woman's Shoes Heel Impact Tester
Function	The tester is applied to test impact durability of woman's shoe
Principle and method	Fix the heel parts of shoes
Weight	101kg
Volume	(W×D×H) 110×93×127 cm
Corresponding test standard	BS-5131,SATRA TM20

2. Description:

Woman's shoes Heel impact tester simulate female wearing high heels on walking and then to test the

resistance of sudden shocks, it also can test heel toughness made of plastic of casting material.

Specimen clamped by fixture fixed in the specimen pedestal, of which height and slope can be adjusted,

The energy of testing impact, successive increases, until the heel broken, read the impact index.

3. Features:

a. Elegant and nice structure design

b. Easy to operate

c. Test impact durability of woman's high heel shoes

4. Specifications:

Model	GX-5034
Capacity	0~18.3J(13.5ft-lb); Min. Reading 0.68J(0.5ft-lb)
Swing arm	φ25mm
Energy of horizontal swing	17.3N-m(12.7ft-lb)
Dimension of impact hammer	φ108mm,49.2mm(D)
Dimension of water channel	42×42×32cm
distance between impact hammer center to axis center	432mm
Impact edge	25×6×35mm(W×D×L),3mm(R)
Specimen adjustable range	0~25mm(H), angle 0~45°
Volume	63×40×105cm
Weight	101kg

Shoes Heel Impact Tester BS-5131 SATRA TM20 Standard

Product Tags:

Shoes Heel Impact Tester
